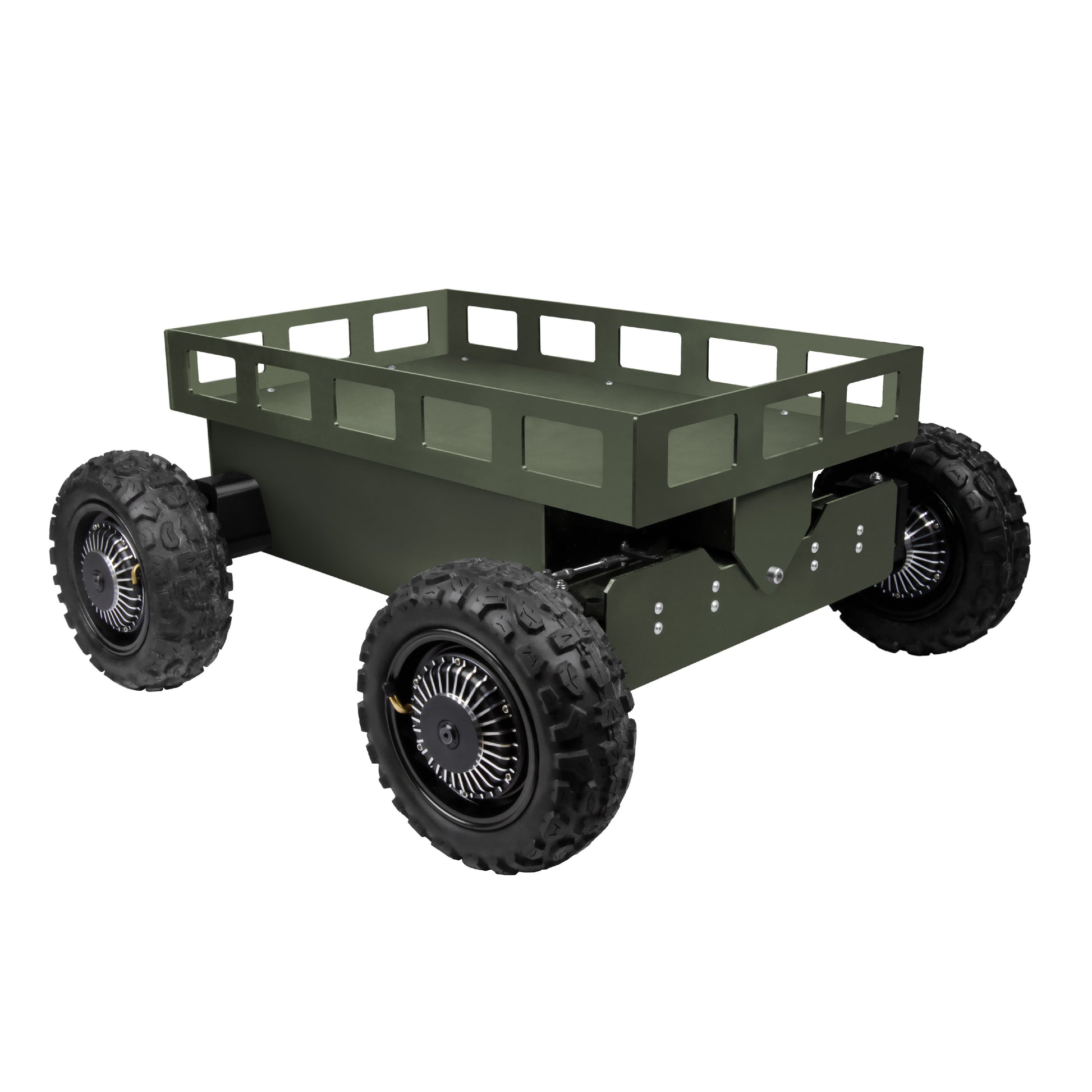

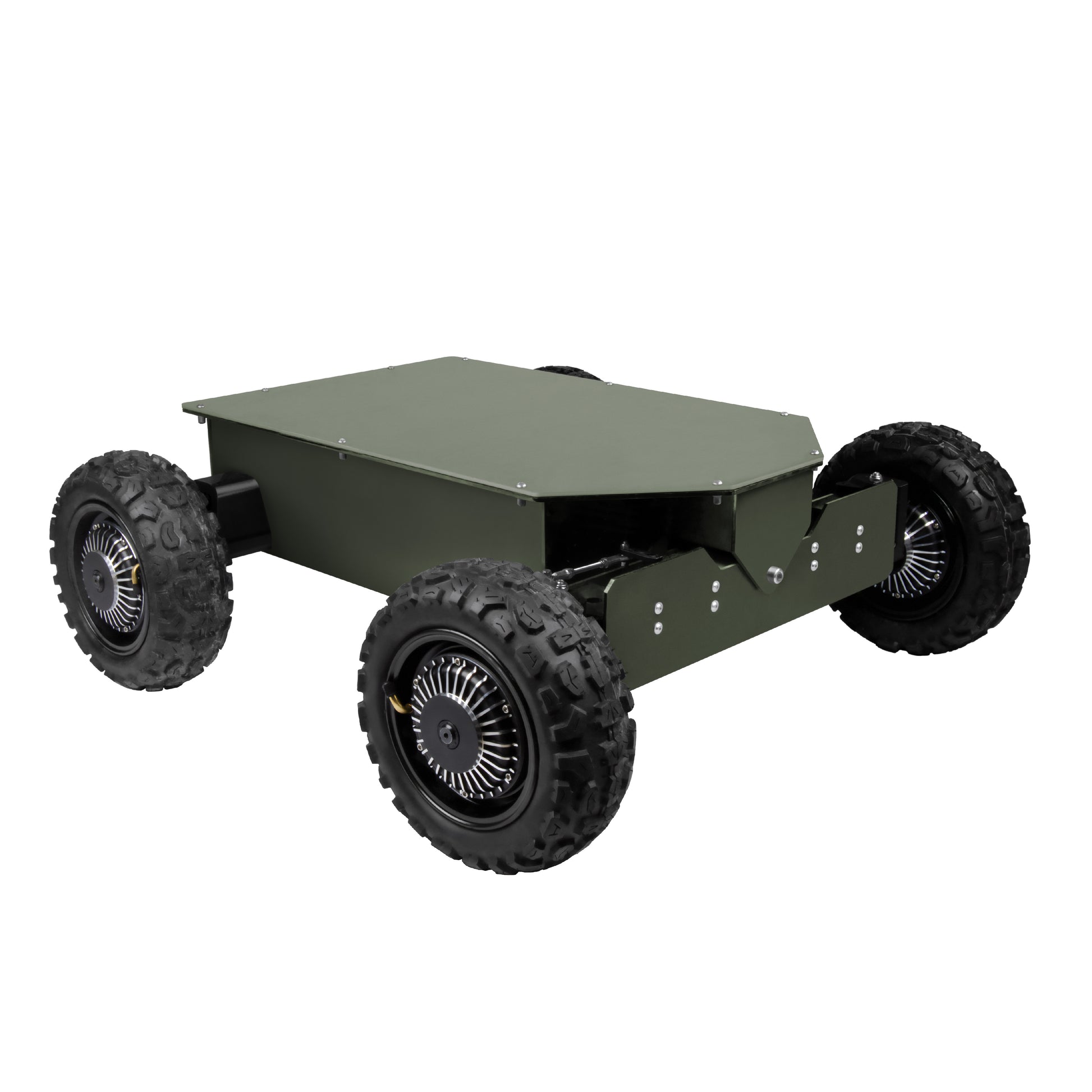

Pilotix Nexton S3 Olive 4×4 2000W Ground Drone
The Pilotix Nexton S3 Olive is a compact, high-performance ground drone designed for cargo delivery, terrain monitoring, surveillance, and multipurpose field operations. It features a powerful 4×4 electric drive system with steerable front wheels, offering excellent maneuverability and traction on rough terrain. A swing beam enhances stability when navigating slopes, trenches, and other obstacles.
The unit can be equipped with day or night vision cameras for full real-time situational awareness. Compatibility with standard control and video transmission protocols ensures seamless integration into existing systems.
With a maximum payload capacity of 100 kg, a range of up to 50 km, and autonomous operation of up to 24 hours, the Pilotix Nexton S3 is perfectly suited for tasks such as delivering supplies to hard-to-reach areas, reconnaissance, perimeter patrols, and remote inspection in challenging environments.
Features:
- 2000W total motor power (4×500W) for confident off-road driving
- 4×4 wheel configuration with steerable front wheels
- Swing beam suspension for improved stability and obstacle crossing
- Ground clearance of 120 mm and ability to handle slopes, trenches, and vertical obstacles
- Quiet operation — max 72.6 dBA
- Standard control and video transmission protocols
- Rapid deployment and teardown in under 15 minutes
- Works in extreme conditions: high temperature, precipitation, and wind resistance
- Up to 50 km range and 24 hours autonomous standby
Specifications:
Type: Electric ground drone (body-based, wheel-driven)
Drive configuration: 4×4
Motor power: 4 × 500 W
Dimensions (L×W×H): 860 × 810 × 385 mm
Ground clearance: ? 120 mm
Load capacity: ? 100 kg
Weight: 55 kg (equipped) / 155 kg (maximum)
Obstacle capability:
- Max incline: 20°
- Max roll angle: 20°
- Vertical obstacle height: 125 mm
- Trench width: 0.25 m
- Ford depth: 0.1 m
Top speed:
- 20 km/h (hard surface)
- 10 km/h (off-road)
Range:
- Up to 50 km on road
- Up to 30 km off-road
Operating time: ? 2.6 h
Autonomous standby time: ? 24 h
Deployment / teardown time: ? 15 min
Operating environment:
- Temperature: -10°C to +40°C
- Pressure: 720–800 mmHg
- Precipitation: rain, snow, fog
- Wind resistance: up to 20 m/s
Control range:
- Open terrain: 1.0 km
- Hills / forest: 0.5 km
Frequencies:
- Control & telemetry: 868/915 MHz
- Video: 5.8 GHz
Battery system:
- 4 × Li-Ion 8S (29.6V, 20Ah)
- 1 × Li-Ion 6S (22.2V, 10Ah)
Max charging time: 3 h
Noise level: ? 72.6 dBA
Optional add-ons:
- Daytime camera
- Night vision camera
- Cargo securing equipment
Package includes:
1x Pilotix Nexton S3 Olive 4×4 2000W Ground Drone
