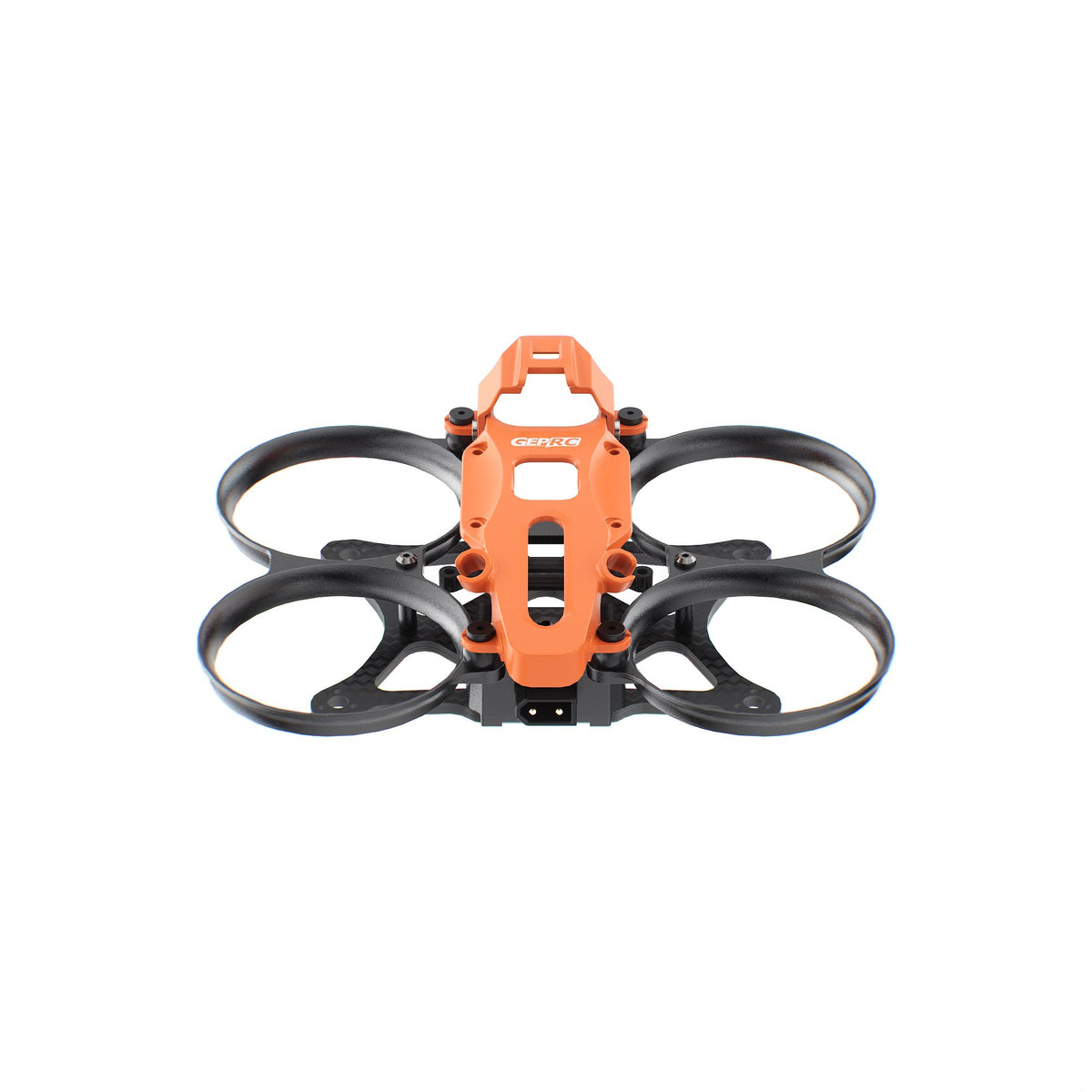

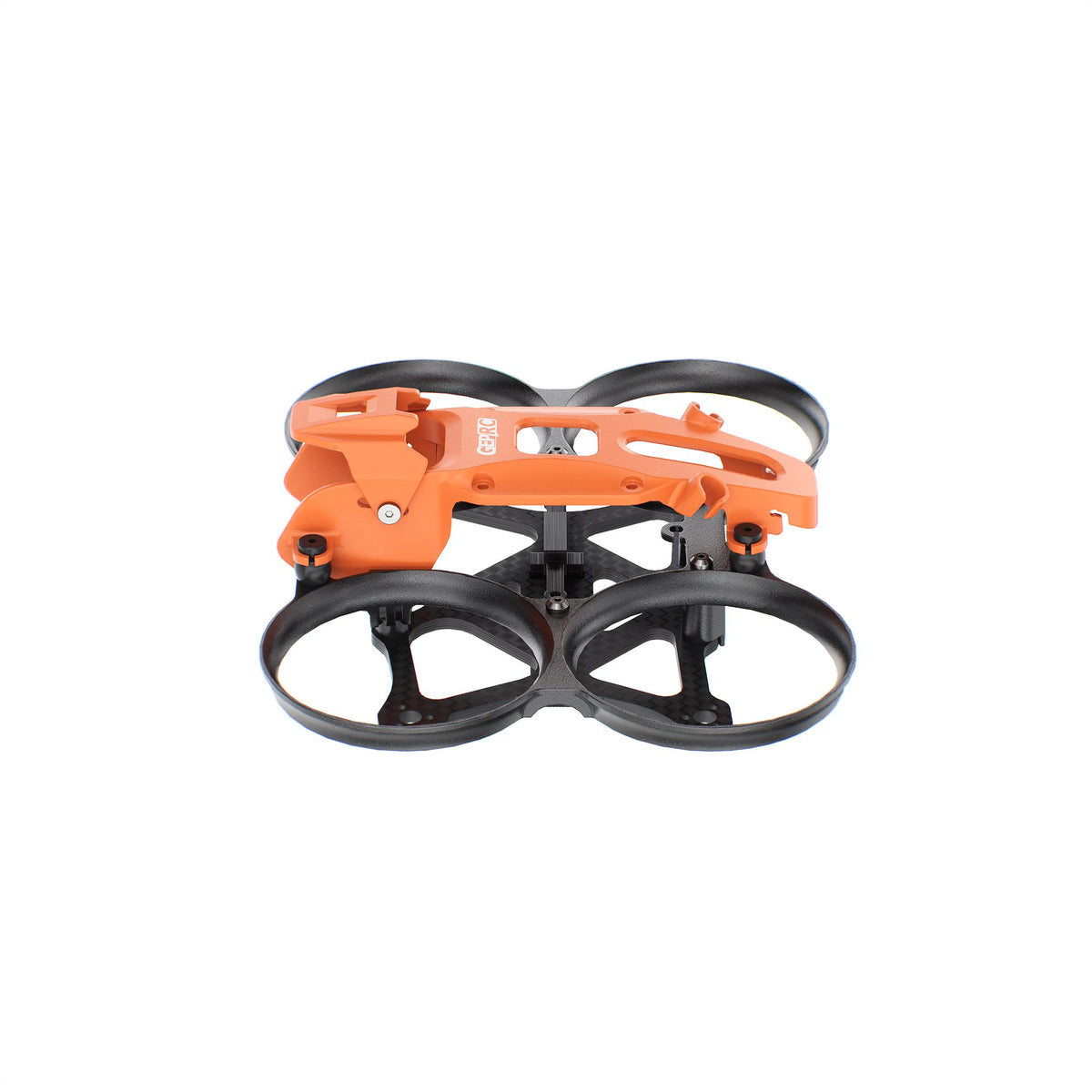

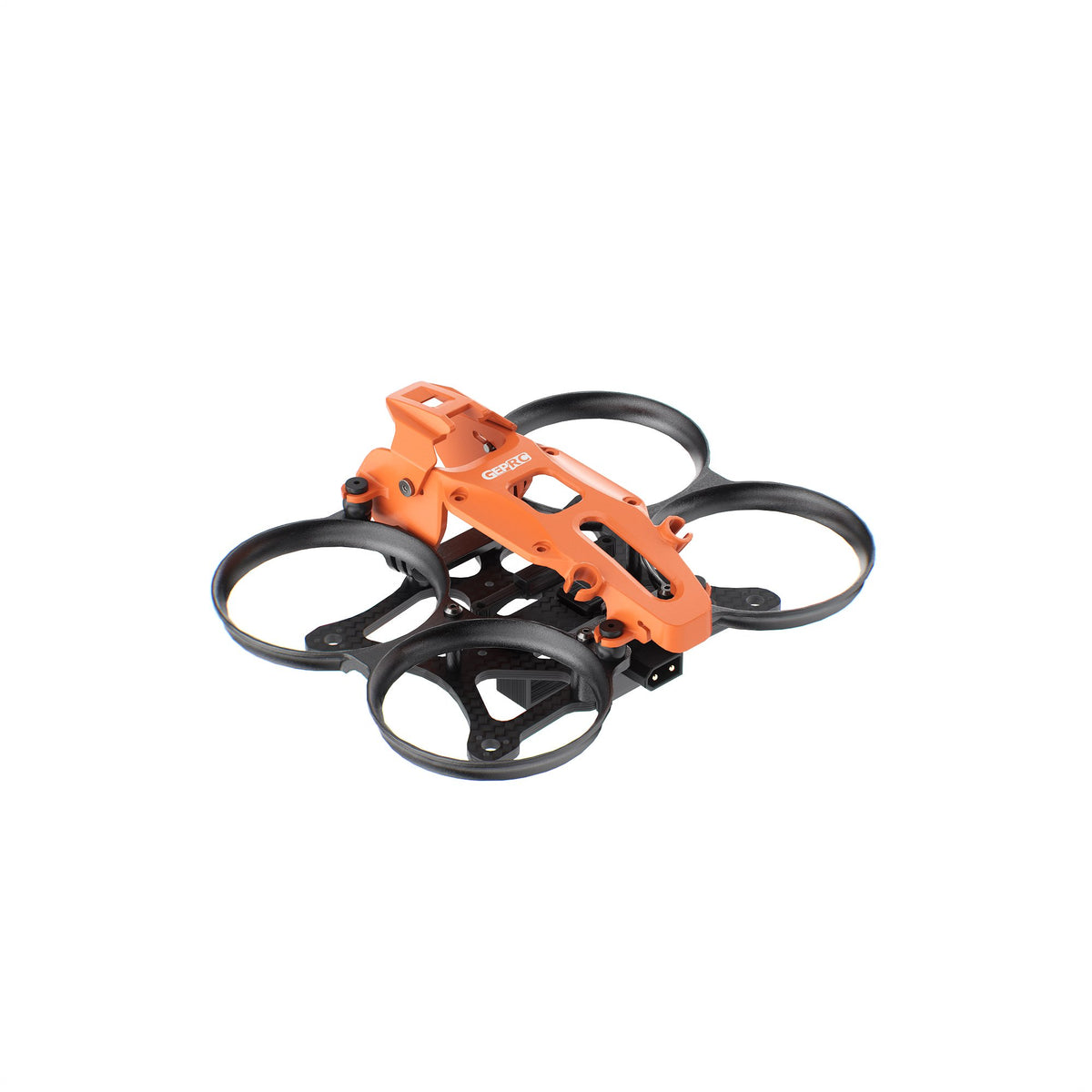

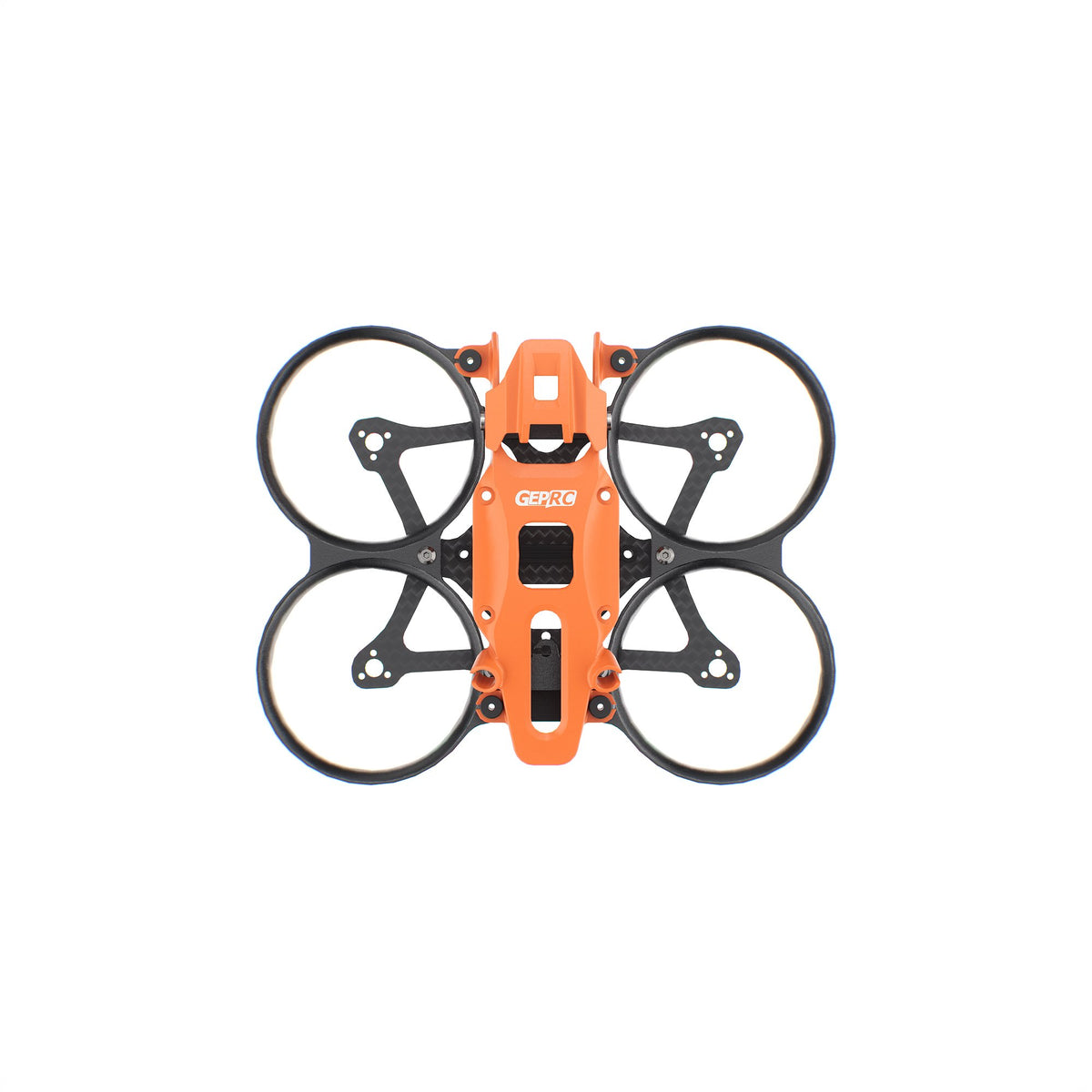

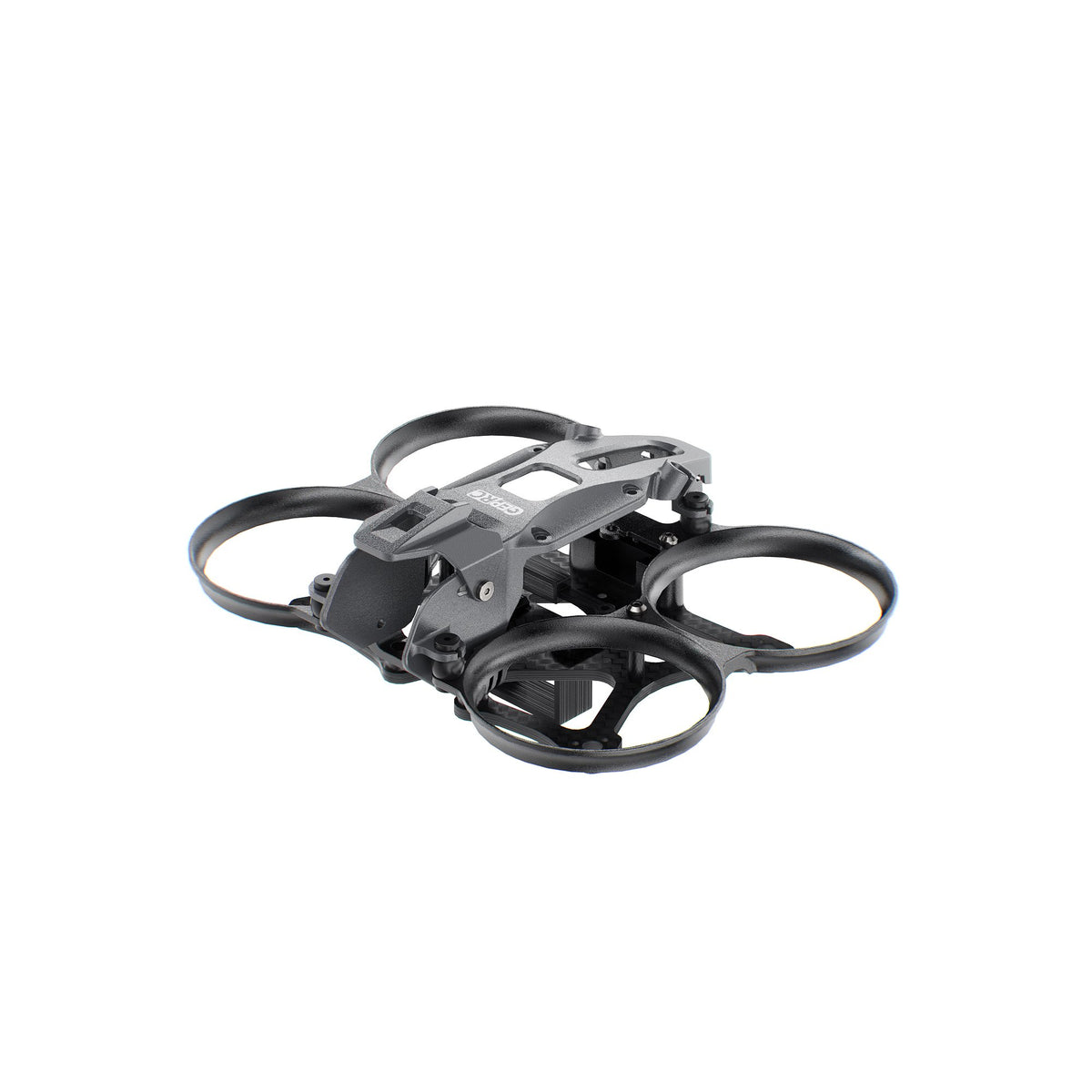

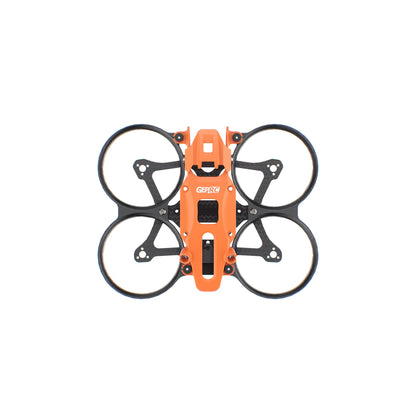

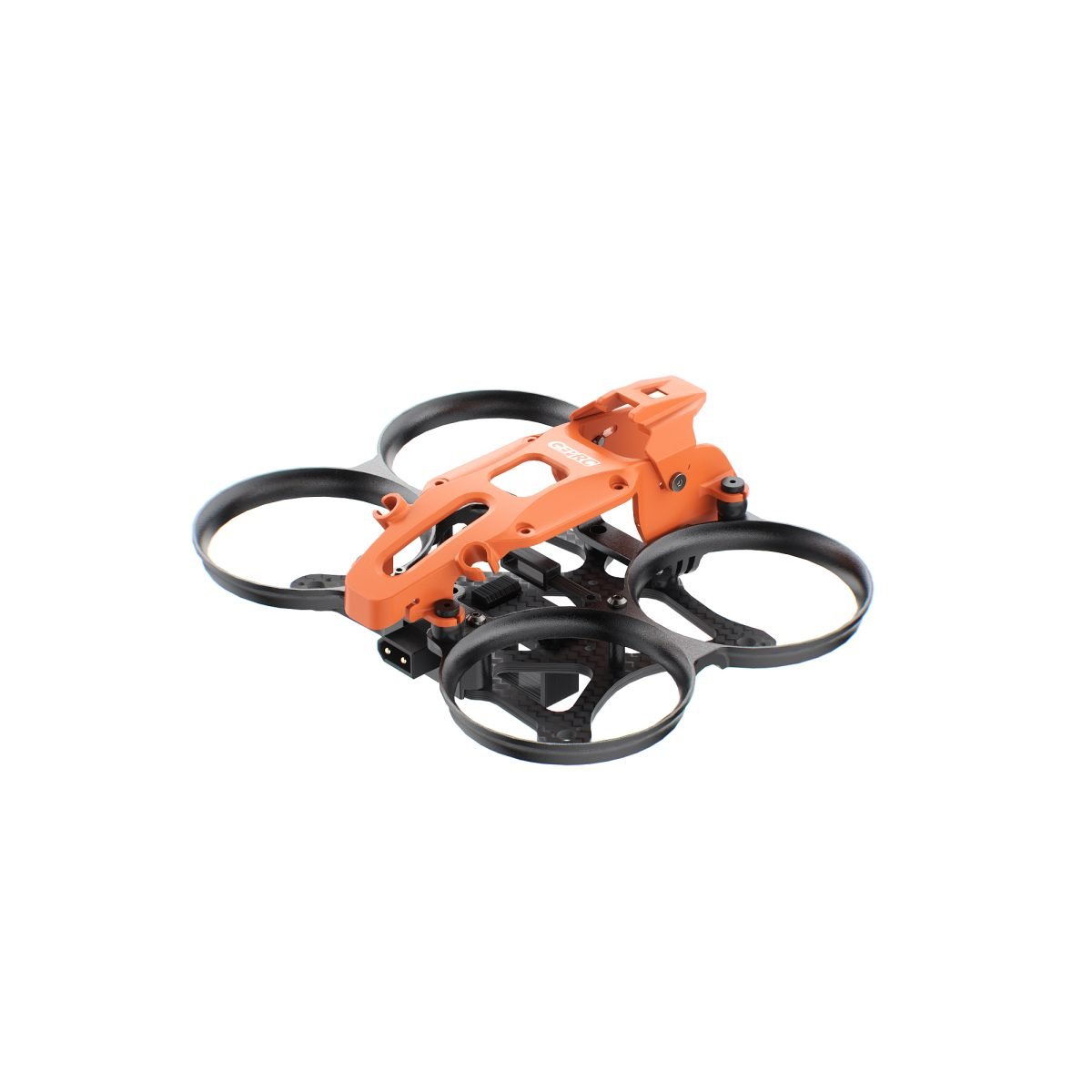

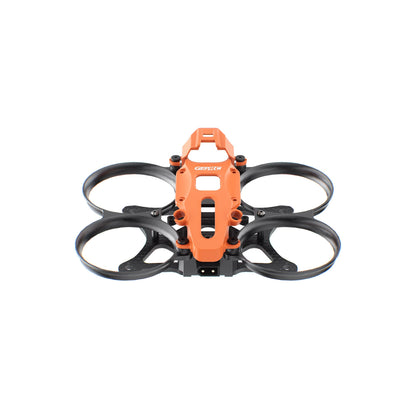

Frame GEPRC GEP-DS16

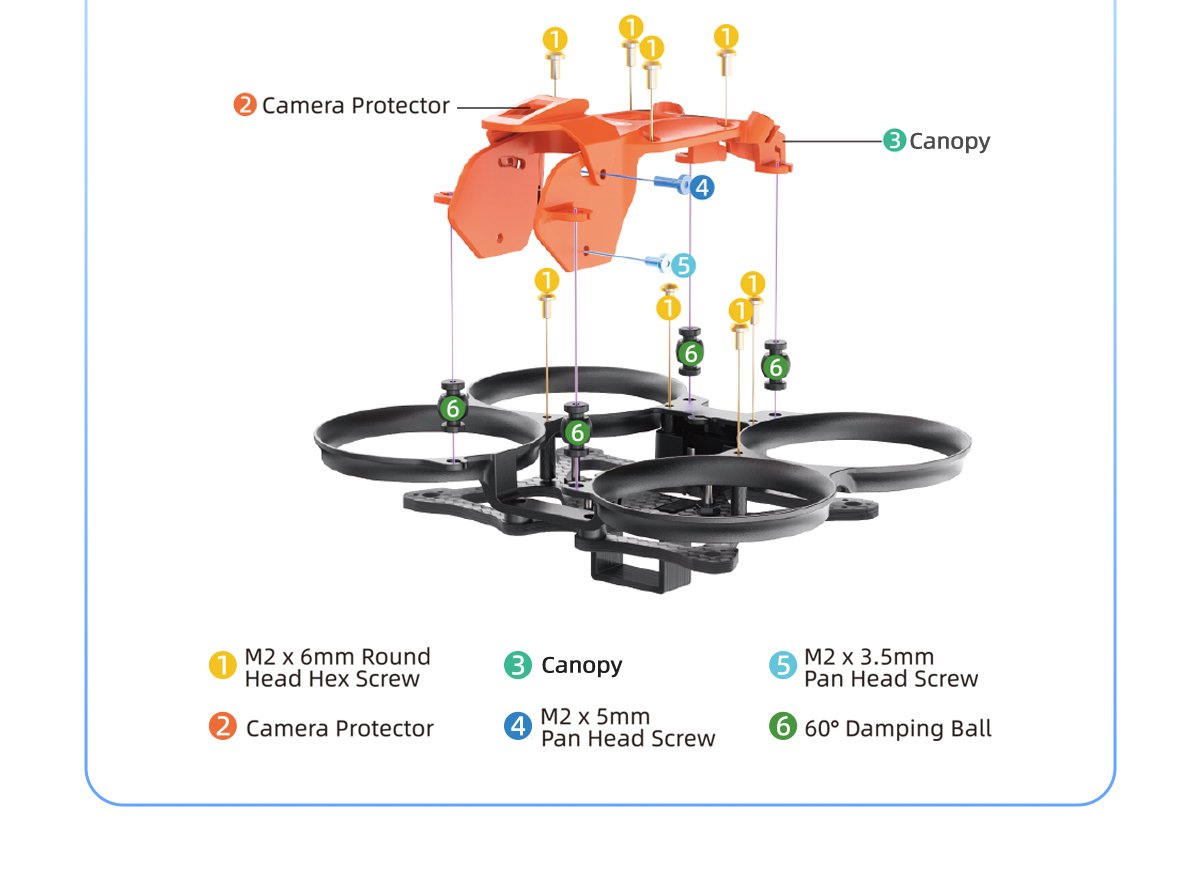

The GEP-DS16 frame is innovatively designed to support the DJI O4 Air Unit Pro VTX. It features an integrated top cover with a four-point damping ball structure, ensuring stable footage. With only 6 screws to remove, the AIO and VTX module can be quickly detached, making inspection and maintenance more convenient. The fixed XT30 power port enhances both aesthetics and practicality. Its compact 1.6-inch body allows agile flights through narrow spaces with ease.
Features: - Integrated top cover with four-point damping ball structure, reducing vibrations and ensuring stable aerial footage - Quick-release structure, only six screws are needed to detach the transmission module - Compatible with DJI O4 Air Unit Pro, featuring a larger CMOS for clearer and sharper imaging - New lightweight injection-molded design, combining reduced weight with durability
Specifications: Model: GEP-DS16 Frame Dimensions: 100x100x58mm Wheelbase: 91mm Carbon Plate Thickness: 2.5mm FC Mounting: 25.5x25.5mm VTX Mounting: 25.5x25.5mm Motor Mounting: 3-M1.4-?6.6mm Lens Mounting Width: 20mm Battery Slot Dimensions: 13x17x10mm Colors: Orange / Grey Propellers: 1.6 inch Weight: 31.3g±5

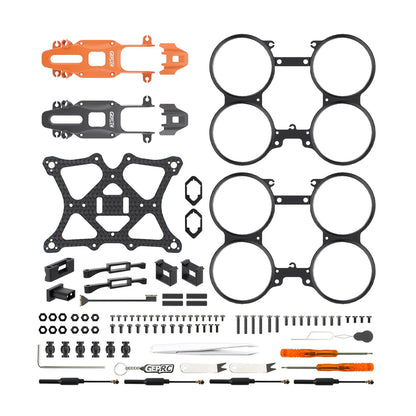

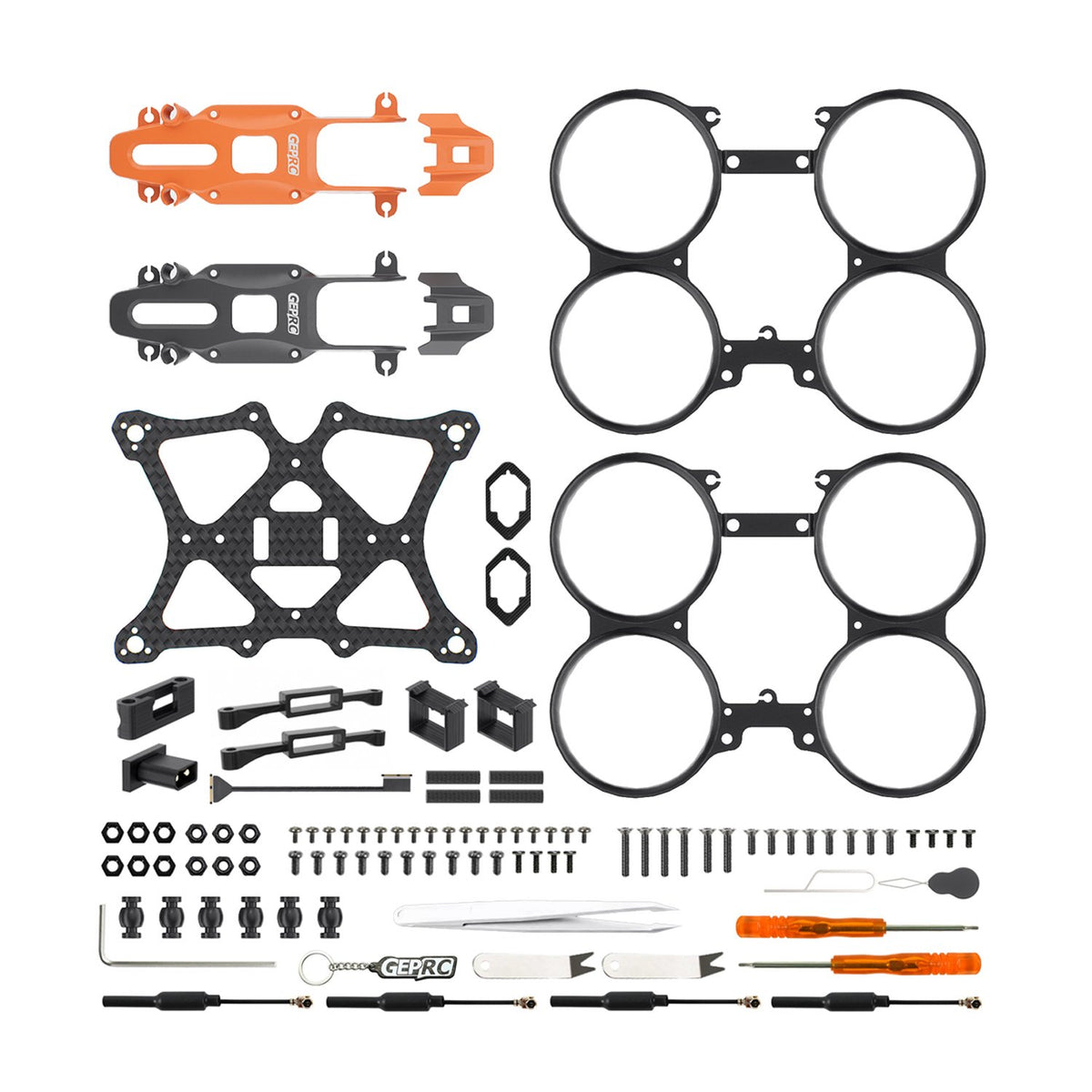

Package includes: 2x Propeller Guards (Black) 1x Main Carbon Plate (Black) 2x Canopy (Orange / Gray) 2x Camera Protectors (Orange / Gray) 1x Screw Pack 2x VTX Antennas 1x 1.5mm L-shaped Hex Wrench 1x Torx Screwdriver
