    Frame BETAFPV Pavo Femto Brushless Whoop Black

    Frame BETAFPV Pavo Femto Brushless Whoop Black

    Brand: BETAFPV

    €14,52
    €14,52
    -% Uitverkocht

    sku: 01090028_1

    Available
    We have the goods available. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    Alle details bekijken
    • Description

    Frame BETAFPV Pavo Femto Brushless Whoop Black

    The Pavo Femto Brushless Whoop Frame is designed for performance and durability, offering a 4% thrust increase in a compact structure. It features improved connections between the whoop duct and carbon fiber plate with added supports and limits for secure assembly. Optimized for the DJI O4 Air Unit, it includes a reinforced protective structure for the circuit board. Additionally, the O4 Air Unit Bracket is compatible with Pavo Femto, Pavo Pico and Pavo20, catering to various FPV builds.

    Features:

    - Enhanced Assembly: Improved connection between the whoop duct and carbon fiber plate with added supports for secure, hassle-free assembly. - Boosted Thrust: Smaller duct design increases thrust by approximately 4%. - Improved Durability: Strengthened protection for DJI O4 Air Unit's circuit board. - Wide Compatibility: O4 Air Unit Bracket works seamlessly with Pavo Femto, Pavo Pico and Pavo20.

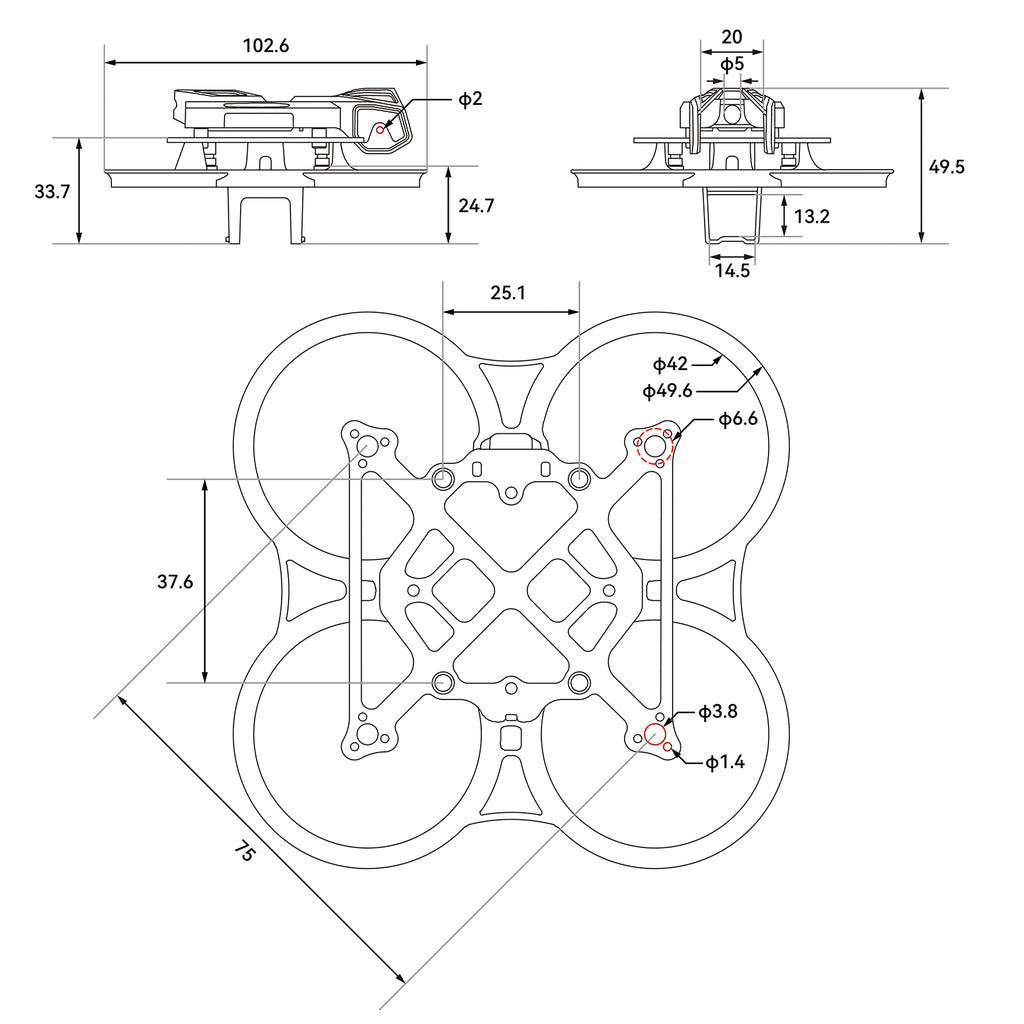

    Specifications:

    - Wheelbase: 75mm - Carbon fiber plate thickness: 2mm - Whoop duct material: PA12 - Whoop duct weight: 8.64g - Frame weight: 22.16g - Flight controller mounting hole size: 25.5mm * 25.5mm - Motor mounting hole size: 3*M1.4 EQS ø6.6 - O4 Air Unit Bracket material: PA - O4 Air Unit Bracket weight: 6.05g - Camera mounting spacing: 20mm

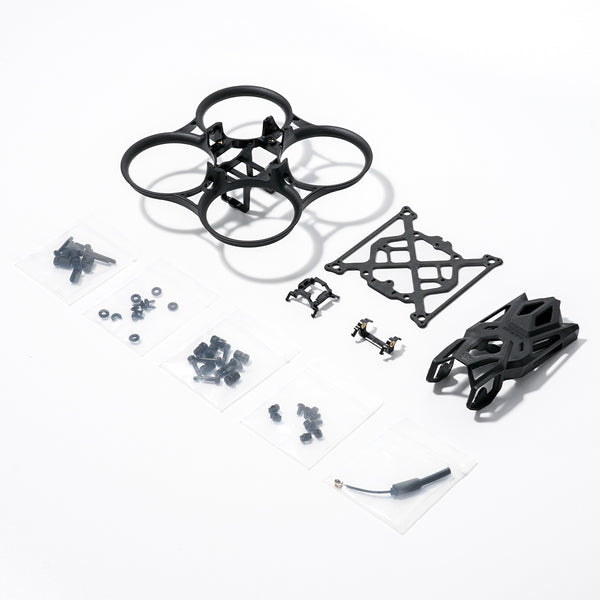

    Package includes:

    - 1 ? Whoop Carbon Fiber Plate - 1 ? Whoop Duct - 1 ? Canopy for O4 Air Unit Bracket - 1 ? Bottom Plate for O4 Air Unit Bracket - 1 ? DJI O4 Camera Bracket - 1 ? Shock-absorbing Mount for DJI O4 Camera - 1 ? 5.8G VTX Antenna - 6 ? Shock-absorbing Balls for Flight Controller (8mm) - 6 ? Shock-absorbing Balls for O4 Air Unit Bracket (6.6mm) - 6 ? Shock-absorbing Pads for O4 Air Unit - 6 ? Shock-absorbing Balls for O4 Camera - 6 ? M2*10 Cylindrical Socket Head Cap Screws - 4 ? M2*14 Flat Head Socket Cap Screws - 4 ? M2*4 Flat Head Socket Cap Screws - 6 ? M1.4*5 Phillips Flat Washer Head Tapping Screws
