FPV Thermal Camera HobbyDrone Mini2 384x288
The HobbyDrone Mini2 384x288 is a high-performance uncooled infrared thermal camera designed for FPV, UAV, and industrial vision systems. Featuring a vanadium oxide detector with 25mK sensitivity, it captures crisp thermal images with smooth 30/60Hz frame rates. Its lightweight, compact design and versatile interfaces make it ideal for integration into drones and compact imaging setups.
Features: - Vanadium oxide uncooled IR focal plane array for high sensitivity and stability - High 384x288 thermal resolution with 12?m pixel pitch - Real-time 30/60Hz frame rate and <12ms response time - Multiple palettes: white-hot, black-hot, and color modes for flexible imaging - Continuous 1.0–8.0x digital zoom with mirroring options - Dual correction methods: shutter and shutter-less for consistent performance - Multi-interface support including USB, UART, I²C, and DVP - Ultra-light, compact module for easy integration on drones and embedded systems - Designed to withstand extreme temperatures, vibration, and impact
Specifications: Overview: Detector Type: Vanadium Oxide Uncooled Infrared Focal Plane Detector Resolution: 384x288 Effective Frame Rate: 30/60Hz Pixel Pitch: 12?m Spectral Band: 8~14?m Noise Equivalent Temperature Difference (NETD): 25mK@25 °C,F#1.0,25Hz Thermal Time Constant: <12ms
Image Adjustment: Non-uniformity Correction: Shutter correction/shutter-less algorithm correction Brightness/Contrast Adjustment: 0~100, optional Polarity/Palette:White-hot/Black-hot/Various palettes supported Digital zoom: 1.0~8.0xcontinuous zoom (step size: 0.1) Image Mirroring: Vertical/Horizontal/Diagonal
Electricity Parameters: Analog Video: PAL/NTSC Digital Video: DVP/BT656/USB2.0/MIPI Communication Interface: UART/12C/USB2.0 Power Supply Input: 5V Typical power consumption of USB output @25°C: <0.42W
Physical Characteristics: Weight (without lens): <7g Dimensions (without lens): 21x21x10.3 mm
Environment Adaptability: Operating Temperature: -40 °C~+80°C Storage Temperature: -50°C~+85°C Humidity: 5%-95%, non-condensing Vibration: 6.06g, random vibration, all axes Impact: 80g, 4ms, final peak sawtooth wave, three axes and six directions

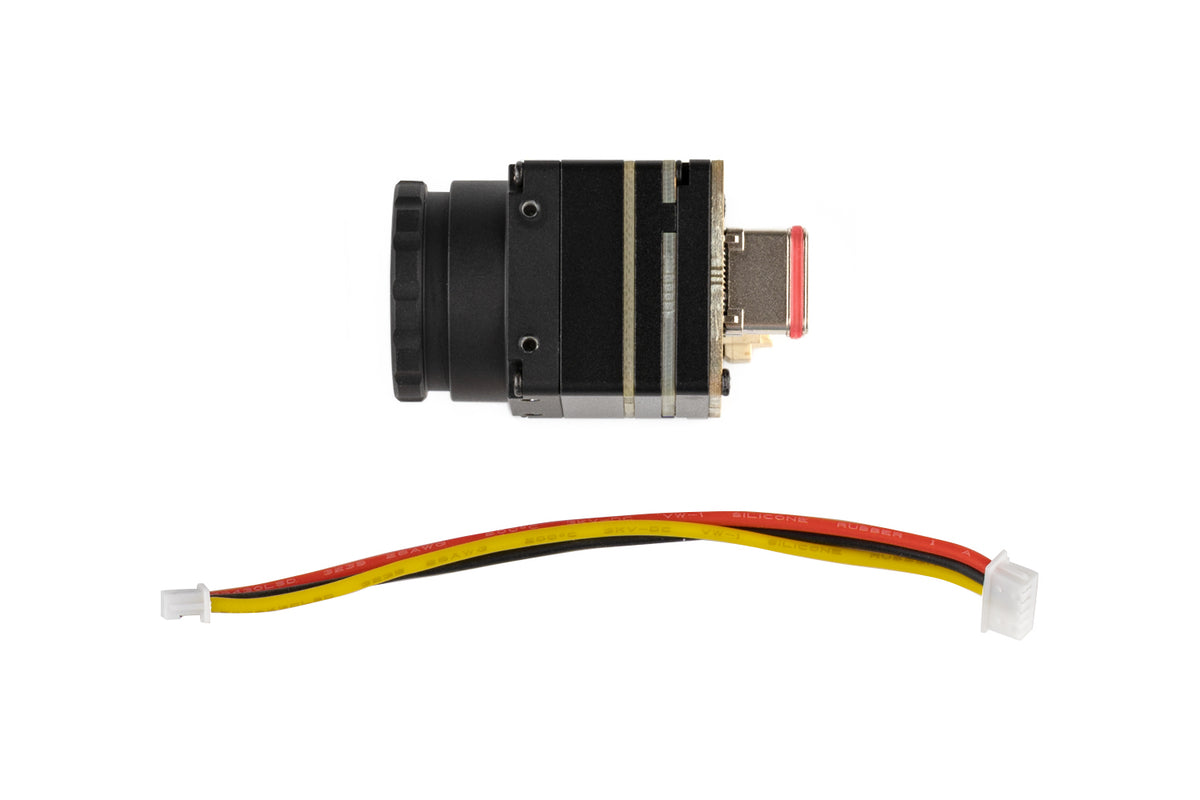

Package includes: 1x FPV Thermal Camera HobbyDrone Mini2 384x288 1x Interface Cable
