FPV Drone HappyModel Mobula6 2024 V3

FPV drone HappyModel Mobula6 2024 V3

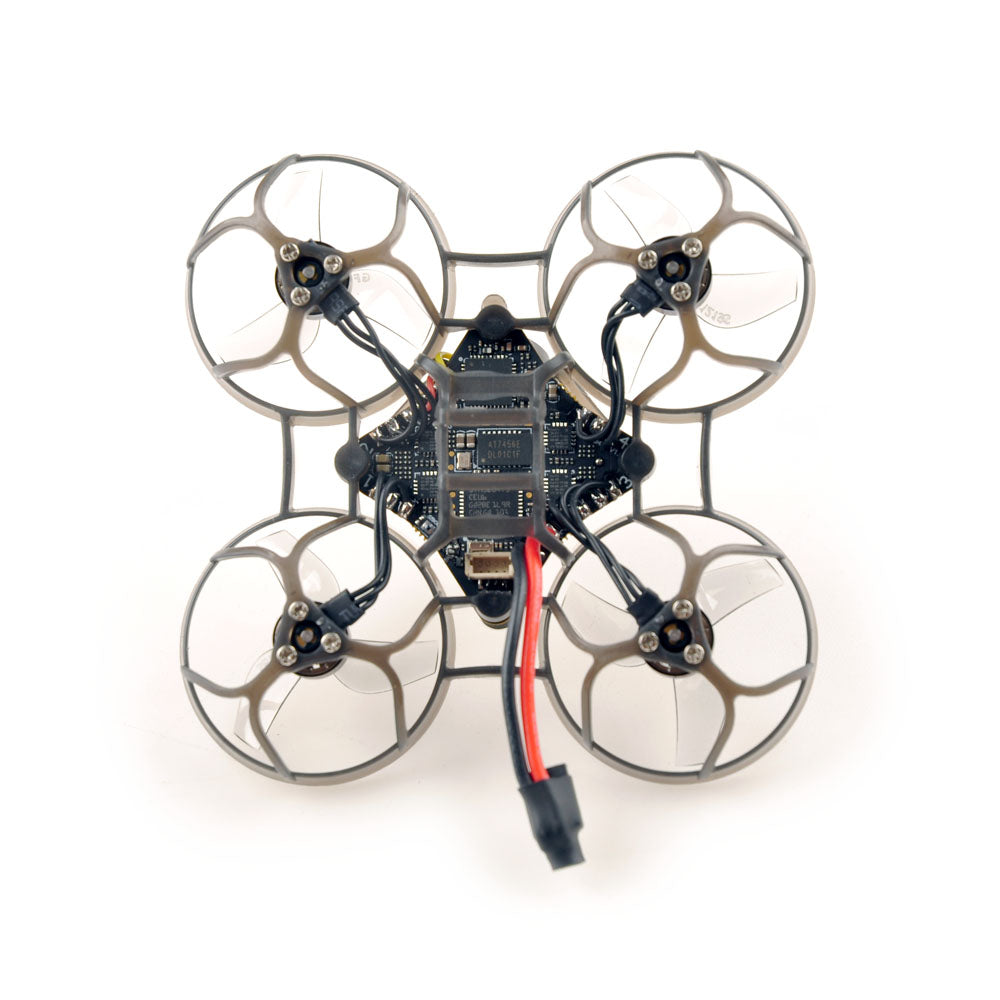

The Happymodel Mobula6 2024 V3 is a next-generation 65mm digital FPV whoop built for HDZero performance in the smallest possible form factor. Featuring the SuperX HD ELRS AIO flight controller, Betaflight 4.4.2 firmware readiness, Bluejay-enhanced 12A ESCs, and HDZero Nano Lite camera, this 25.7g drone delivers outstanding 720p clarity, ultra-fast control response, and smooth indoor flight. Designed for racers, freestyle pilots, and HDZero fans who want top performance in a tiny package.

Features: - HDZero Digital Video – Super clear 720p HD image with very low latency for indoor racing and freestyle. - Betaflight 4.4.2 Ready – Uses the CRAZYBEEF4DX target with fast and stable flight performance. - Built-in ExpressLRS 2.4GHz Receiver – Long range, fast response, and easy updates via WiFi or passthrough. - SuperX HD ELRS AIO Flight Controller – Lightweight all-in-one board with 5V BEC, voltage sensing, and blackbox support. - 12A Bluejay ESCs – Smooth, efficient, and quiet motor control with DSHOT300 protocol. - Powerful EX0802 19000KV Motors – Fast acceleration and great control for small indoor spaces. - Tiny and Lightweight – Only 25.7g without battery, perfect for indoor flying and safe around people. - Compatible With A30 & BT2.0 Batteries – Works with both plugs when using batteries with lead wires. - Durable 65mm Frame – Strong, flexible and comes with a spare canopy. - High-Quality Propellers – Gemfan 31mm props for smooth flight and quick response.

Specifications: Brand: Happymodel Model: Mobula6 HDZero V3 (2024) Wheelbase: 65mm Weight: 25.7g (without battery) Size: 80x80x50 mm Max Wind Resistance: <10 km/h GPS: No Connectivity: Wi-Fi Operating Frequency: 2.4GHz

Flight Controller – SuperX HD ELRS Firmware: Betaflight 4.4.2 Ready Target: CRAZYBEEF4DX MCU: STM32F411CEU6 Gyro: BMI270 or ICM42688P (SPI) Power Input: 1S (2.8–8.7V, but this drone supports 1S only) BEC: 5V 1A OSD: No analog OSD chip Receiver: Built-in ExpressLRS UART (V3.0-ready) Receiver Firmware: ExpressLRS 3.0.1 Update Modes: WiFi / Passthrough / ELRS Configurator

4-in-1 ESC Continuous Current: 12A Peak Current: 15A (3s) Firmware: Bluejay 0.19, 48kHz Protocol: DSHOT300 Compatibility: ESC-Configurator / BLHeli_S Suite

Motors – EX0802 19000KV Configuration: 9N12P Size: ?10.5x14.9 mm Weight: 1.7g Shaft: 1mm Voltage: 1S

Propellers – Gemfan Type: 1219 Bi-blade / 1210 Material: PC Diameter: 30–31mm Shaft Hole: 1mm Weight: 0.19g

Camera – HDZero Nano Lite Size: 14x16x11mm Weight: 1.5g Sensor: Ultra-sensitive CMOS FOV: 4:3: 130° / 108° / 84° 16:9: 122° / 108° / 65°

HDZero Whoop Lite VTX Input: 1S Power: 25mW / 200mW Mounting: 25.5x25.5 M2 (soft-mounted) Weight: 4.5g

Battery Compatibility Recommended: 1S LiPo / LiHV Supports A30 and BT2.0 plug batteries (with lead wire)

Package includes: 1x Mobula6 65mm frame+Canopy 1x SuperX HD ELRS AIO flight controller 4x EX0802 KV19000 Unibell brushless motor 8x Gemfan 1210 31mm propeller (4cw+4ccw) 1x HDZero Nano Lite Camera 1x HDZero Whoop Lite VTX 1x Spare Canopy 1x Propeller disassemble tool 1x Screw driver
