Battery Connector FLYWOO A30 Male-Female (5 pcs)
Battery Connector FLYWOO A30 Male-Female (5 pcs)
Brand: FLYWOO
sku: SKU:GH206
Limited AvailableKan beschikbaarheid voor afhalen niet laden
- Description
Battery Connector FLYWOO A30 Male-Female (5 pcs)

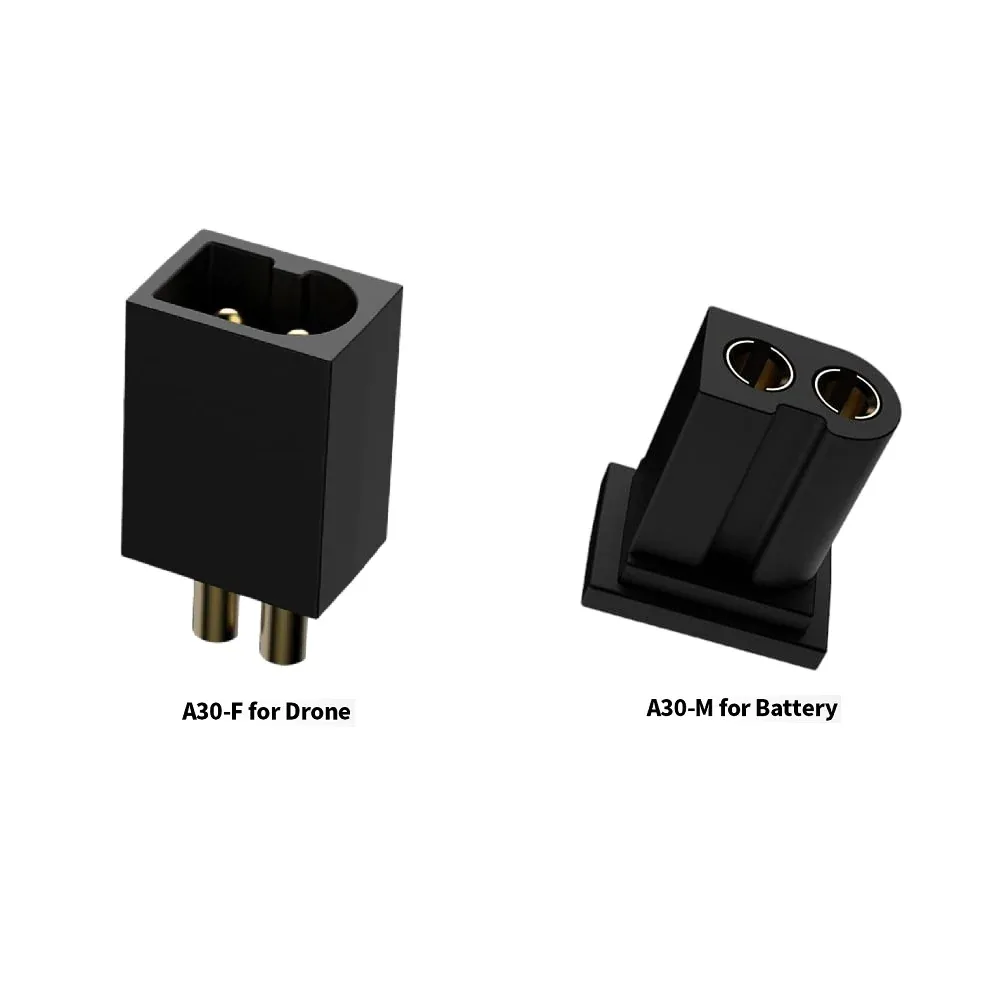

The FLYWOO A30 Battery Connector Set includes 5 male and 5 female high-current connectors, ideal for drones requiring a robust and efficient power connection. Designed to support up to 15A of continuous current and peak discharges up to 30A, these connectors significantly outperform traditional PH2.0 options. With brass-gilded metallic contacts and flame-retardant PA66 insulation, they ensure durability, low contact resistance (1.6m?), and safe operation in a wide temperature range from -20°C to 120°C. Perfect for battery builds, ESCs, or custom power harnesses, the A30 connector is the new standard for high-performance micro drones and RC electronics.
Specifications:
Model: A30 Standard Current: 15A Peak Discharge Rate: 30A Withstand Voltage: DC 500V Contact Impedance: 1.6m? Plug Color: Black Metallic Material: Brass gilding Insulating Material: PA66 Wire Compatibility: 20# / 22# Operating Temperature: -20°C to 120°C Flame Retardant Rating: UL94 V0
Package Includes:

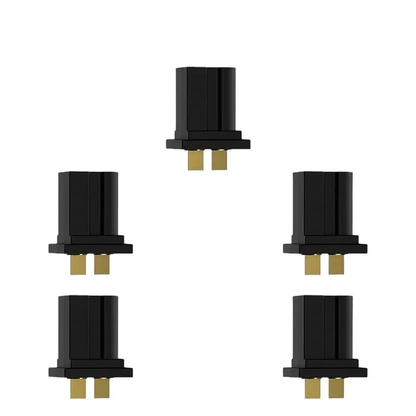

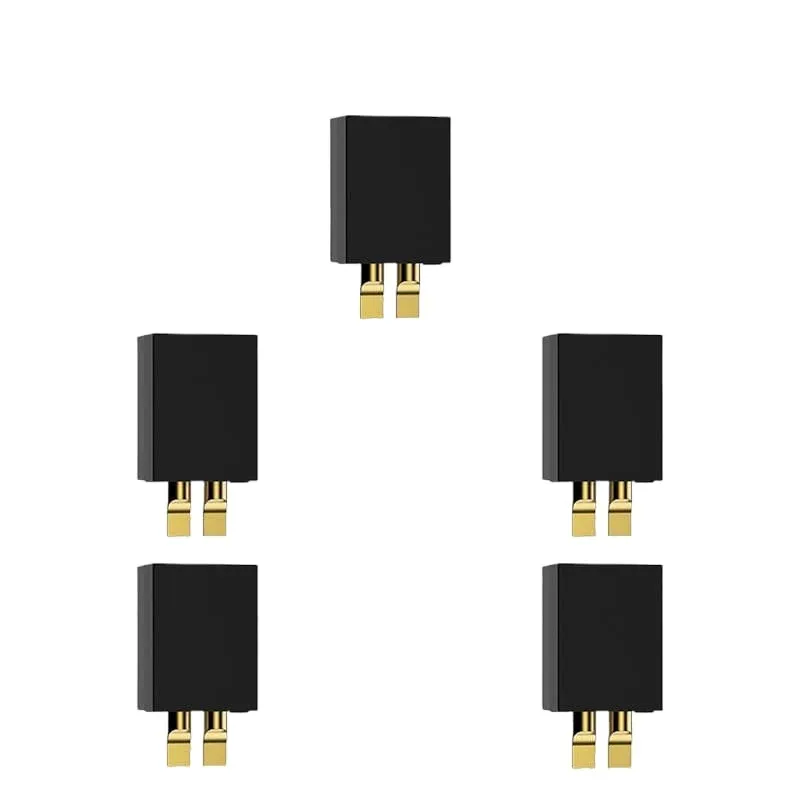

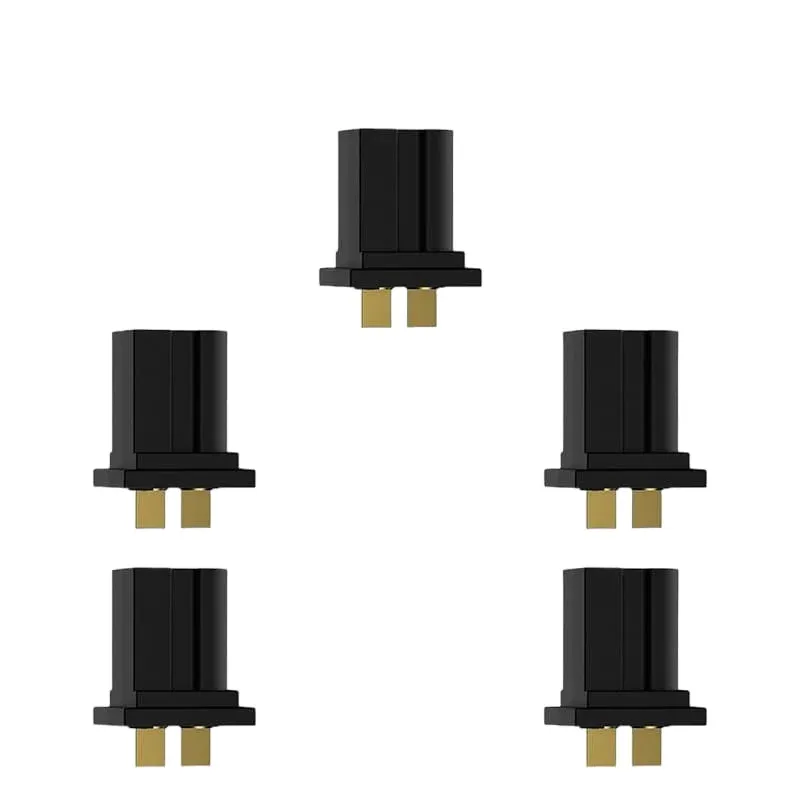

5 × A30 Male Connectors 5 × A30 Female Connectors
